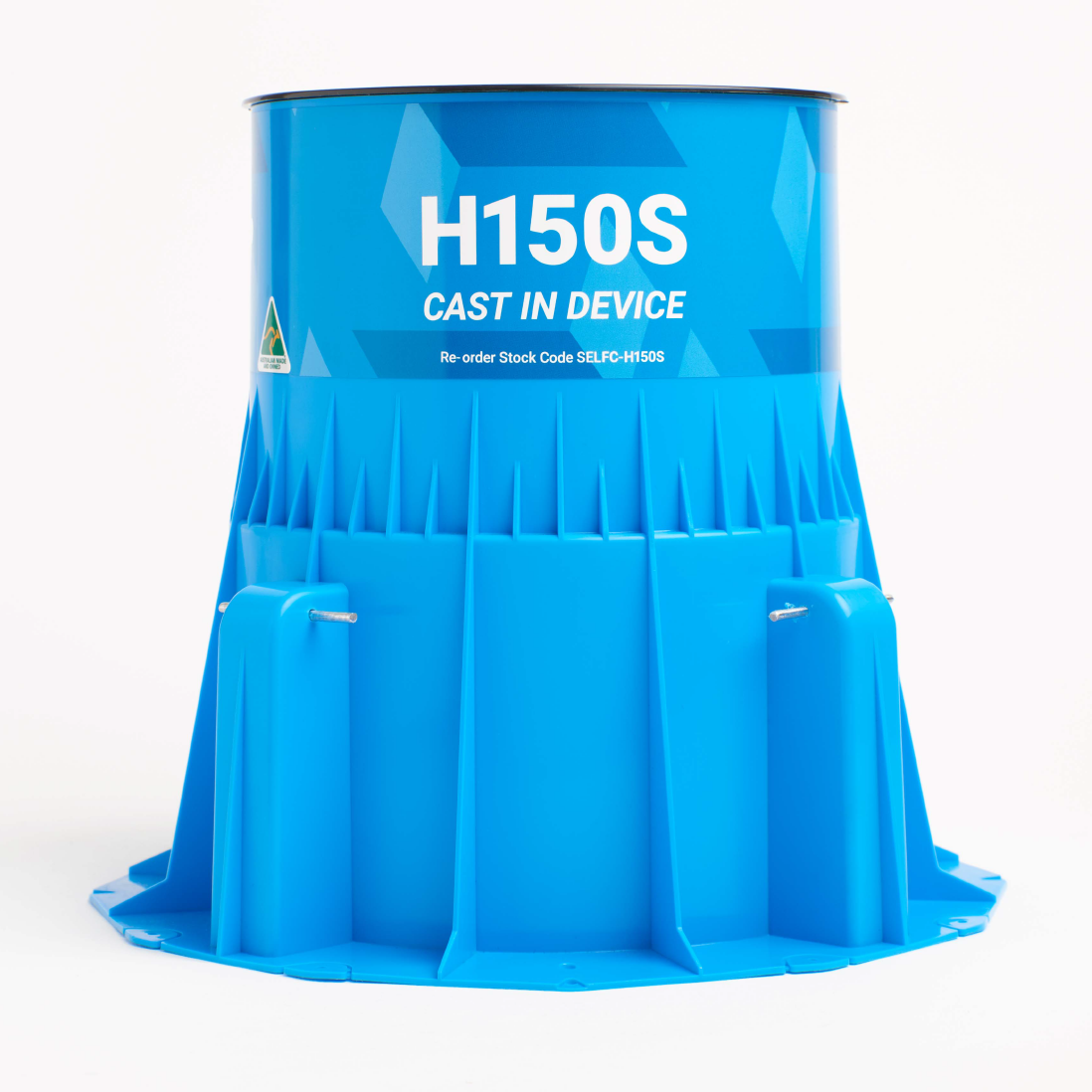

• P Sure Snap H150S Single Front10

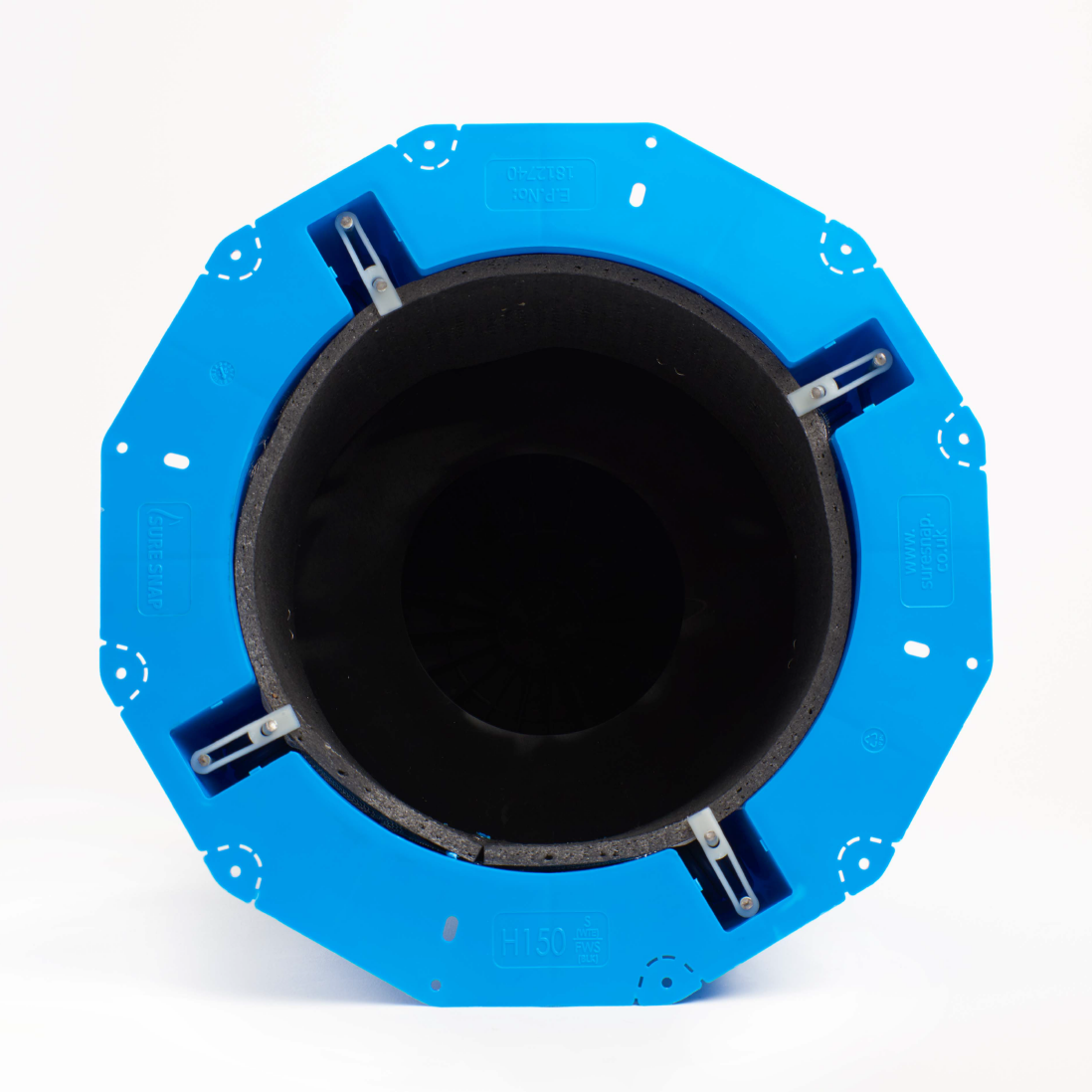

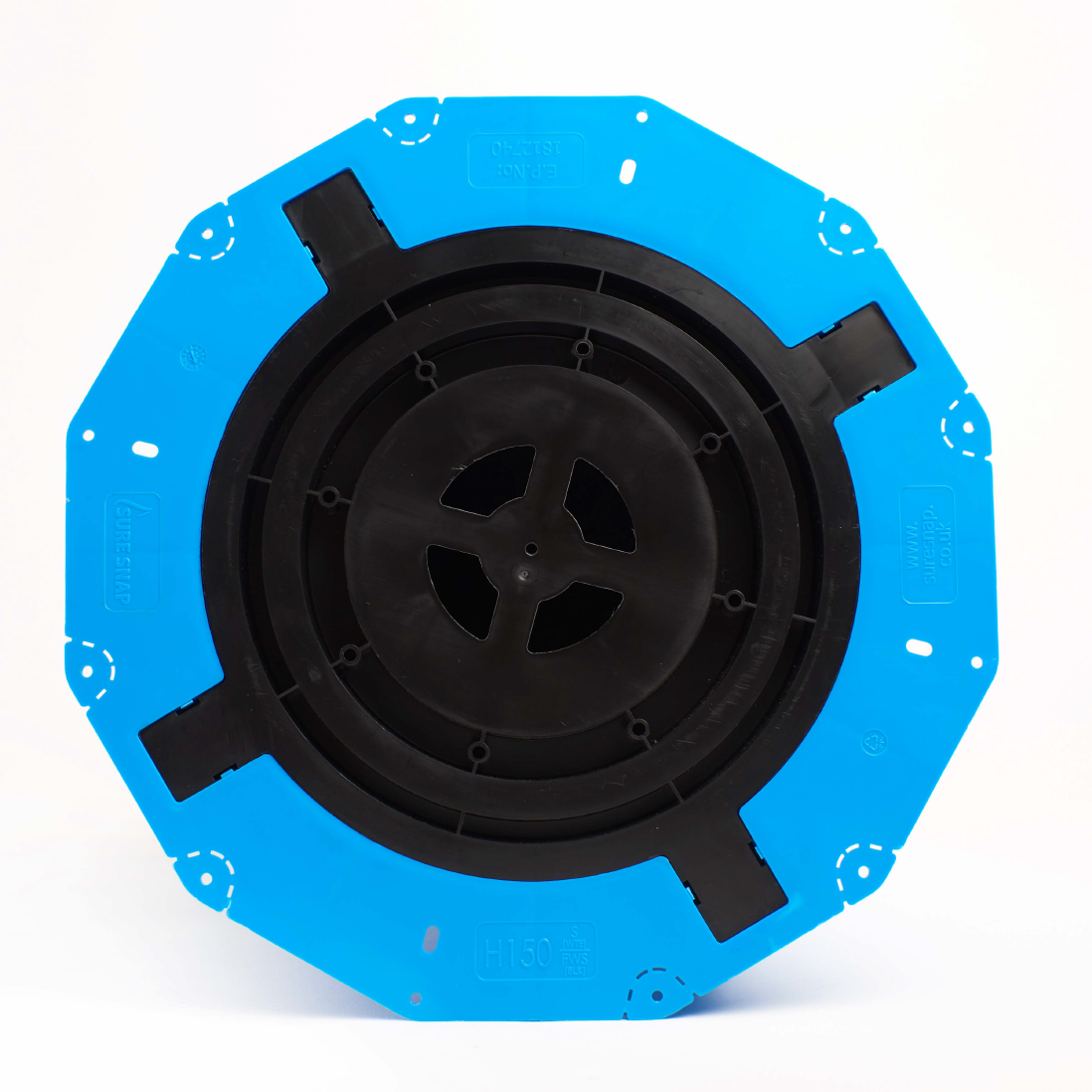

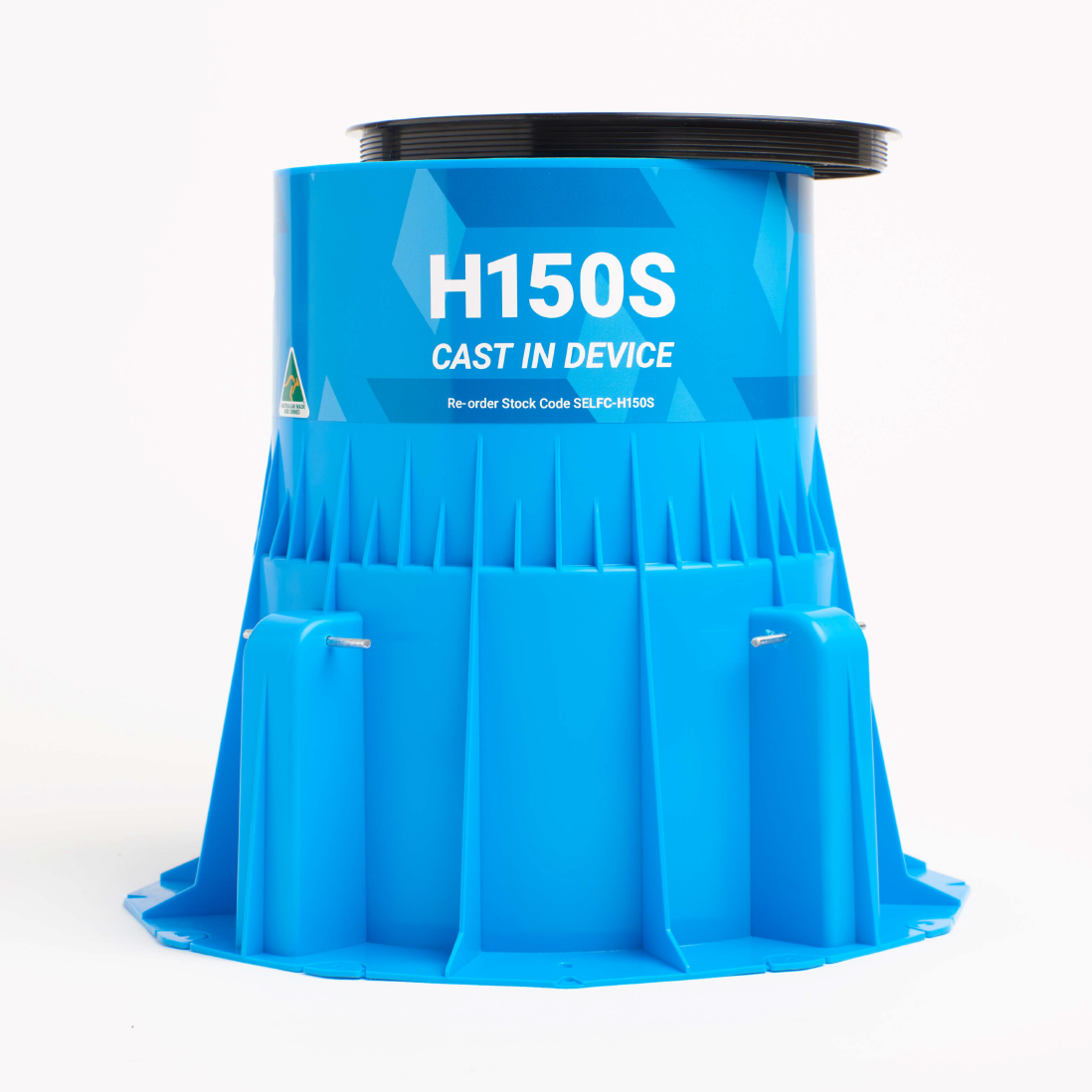

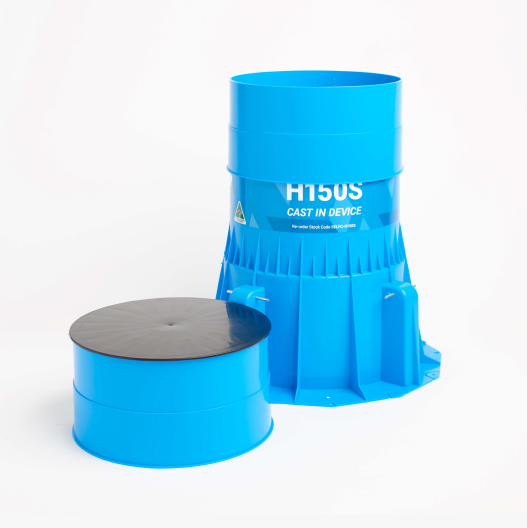

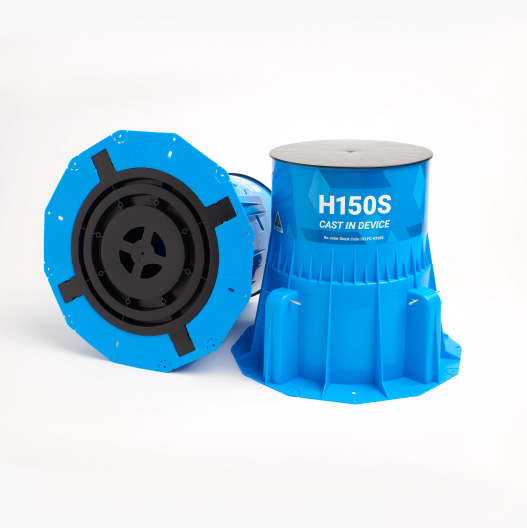

The H150S is a high-top, cast-in fire collar for concrete slabs 150mm and thicker.

For use with a range of pipe types and diameters.
Comes with a rubber ring that seals against the pipe.

Click here for Fire Rating Table

Click Here for Technical Literature

v2 Selkent button image

Association for Specialist Fire Protection (ASFP)

Collar Approvals

EN Approvals
PipeMeasured pipe
diameter
range* (mm)		Measured pipe wall thickness range* (mm)Measured pipe end or socket wall thickness range* (mm)IntegrityInsulationReport
PVC110 to 1603.3 to 10.3120120BRE P104650-1003
PVC + Coupling110 to 1606.4 to 10.17.0 to 10.8120180BRE P104650-1003
PP1604.6 to 5.2120120BRE P104650-1003
PP + Coupling1103.43.4180240BRE P104650-1003
PE-HD110 to 1604.2 to 15.4120120BRE P104650-1003
* Note: The measured ranges of the pipe, and the pipe end/socket, must be considered separately. All values are measured sizes, rather than nominal.

Product Specs

Element: Concrete slab

Pipe Type: PE-HD, PVC, PP
